All-Machine Clean-Finish Sleeveless Bodice Lining Technique Tutorial

This has already been done several times, and unfortunately what it really needs is a video to demo how to turn it right side out as photos just cannot convey (done!), but redundancy never hurt anybody, right?

Back in the Olden Dayes, commercial pattern companies had you go to ridiculous contortions to line a sleeveless dress. You were to sew the fashion and lining fabrics together at the neckline and armscye to within a few inches of the shoulder. Then you were to try to roll out the fabric and hold it steady to put in a straight shoulder seam. Then you had to finish the shoulder by hand. Ridiculous!

There is a new, modern way to do this all by machine with no hand futzing at the end.

Requirements: Your pattern must have a center back or front seam and two side seams. Three open seams are required, otherwise the geometry of this won't work and you'll find yourself with an endless tube resembling a Mobius strip or a water weenie.

First: Sew the shoulder seams of your fashion and lining fabrics. Finish and press. Do NOT sew the side seams. Your two side seams and front or back seam remain open.

Second: Trim 1/4" or 1/8" (or the skinniest you can go) from the neckline and armscye of your lining. This makes your lining smaller than your fashion fabric. The lining will automatically roll to the inside when the two pieces are sewn together, for a nicer look.

Trim Neckline and Armscye

Third: Sew your fashion and lining fabrics right sides together at the neckline and armscyes. Trim close to stitching at curves (I use my serger). You may need to clip into the curves.

Stitch Armscye and Neckline

Fourth: Pull the bodice right sides out through the shoulder tunnels, as described in this video:

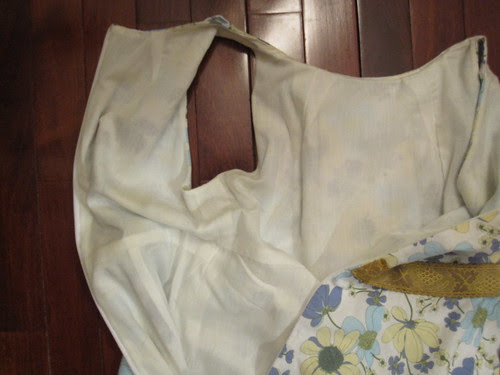

Here's a still photo representation and this is what it looks like when half turned right side out.

Fifth: You can see that even before pressing, the lining is pulling itself under to the inside. Press. Understitch if needed. Your trim job on the lining should eliminate the need for understitching, but it is not always enough.

Turn of Cloth

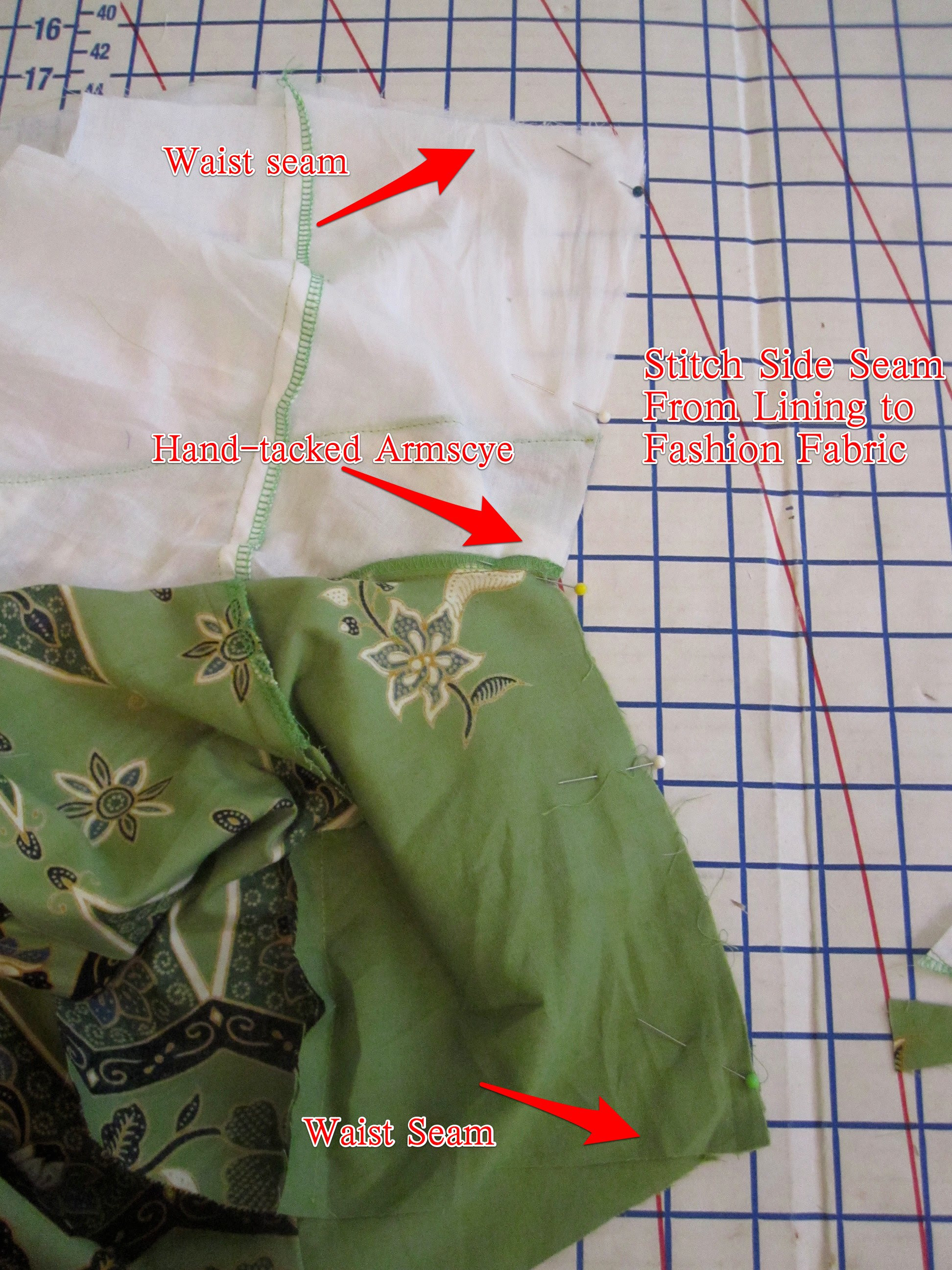

Sixth: Hand tack at the underarm to ensure perfect matchup at the seam. I don't find it necessary to baste the whole seam, just that junction (and the waist seam and/or midriff junction, if there is one). Sew side seams. If you are inserting the zip into one of the sides, do the hand-tack at the back or front and one of the sides, sew one side seam and the back or front seam, and then insert the zip into the remaining open seam.

Hand Tack Underarm

And voila! A beautifully finished bodice with no* hand-sewing.

*Ok, you've got me. Almost no hand sewing. You can skip the hand tack at the underam if a perfectly precise matchup isn't important to you, but it takes about 15 seconds and it's worth it to me.

To clean-finish by machine at your zipper, visit this tutorial I posted previously.

And here it is once the zipper is installed, a thing of beauty to behold! The completed dress is here.

Completed Lining
